Reverse Plain Dutch Weave

Reverse plain Dutch weave

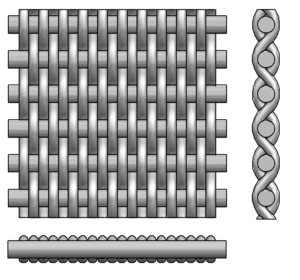

Reverse Plain Dutch Weave Mesh Pattern

This is produced in a reverse of the Plain Dutch Weave wire arrangement, whereby finer warp wires are positioned tightly together and a thicker weft wire is woven in at set intervals.

The cloth is mechanically strong with a high throughput and it performs particularly well in high pressure vertical and horizontal filter leaf applications where backwashing and filter cake removal are important.

Reverse Plain Dutch Weave Specifications

Warp
Count
Weft
Count
Warp
Size
Weft
Size
Nominal
(microns)
Absolute
Range
Porosity
%
Kg/m2
128360.2020.4008095-10555%2.70
170500.1500.3006082-9054%2.05
290750.0900.2004050-5553%1.31
6251240.0400.1301725-3255%0.80
