Twill Dutch Weave

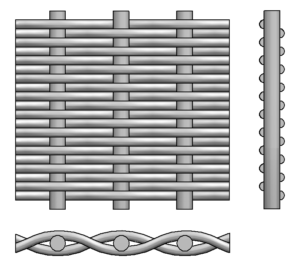

Plain Dutch weave

Twill Dutch Weave Mesh Pattern

Twill Dutch Weave is produced with the weft wires packed together in the same principle as Plain Dutch Weave but with double the number of weft wires woven in an over two, under two pattern.

The weft wires overlie each other creating a sinuous path of filtration. The cloth is very robust with a smooth surface and the finer weft wires and smaller pore sizes provide excellent flow characteristics.

The finest filtration rates are obtained with this type of weave.

Twill Dutch Weave Specifications

Warp
Count
Weft
Count
Warp
Size
Weft
Size
Nominal
(microns)
Absolute
Range
Porosity
%
Kg/m2
807000.1000.0772534-3640%1.20
1658000.1000.0771524-2847%0.71
16514000.0680.0401015-1837%0.72
20014000.0680.040511-1333%0.75
32523000.0360.02527-834%0.47
